TECHNICAL INFORMATION

      Product Features

  • Actuator Material: Polycarbonate
  • Amperage: 20 Amp
  • Voltage: 120/277 VAC
  • Body Material: Polycarbonate
  • Color: White
  • Grounding: Self-Grounding
  • Pole: 3
  • Termination: Side & Back
  • Type: Rocker Switch
  • Warranty: 2-Year Warranty



     Standards and Certifications

  • Certification: UL Listed
  • Compliant with UL 20

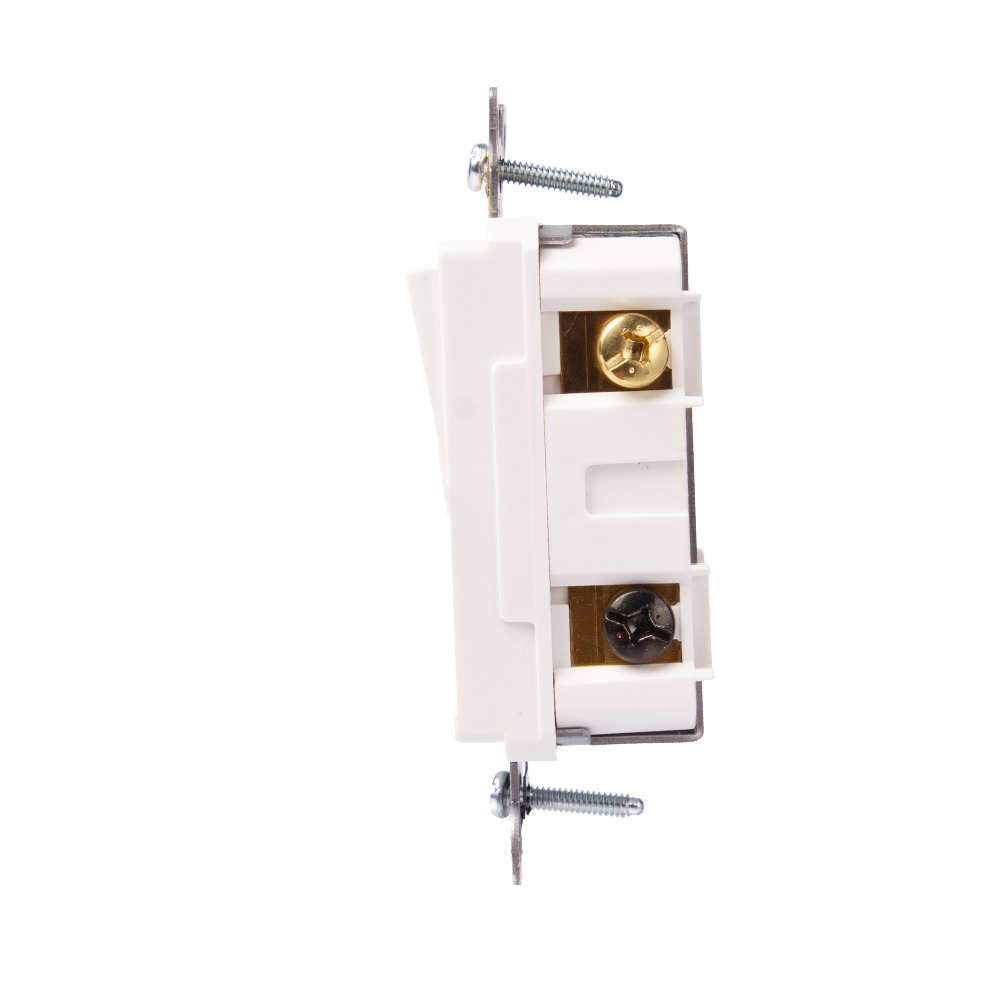

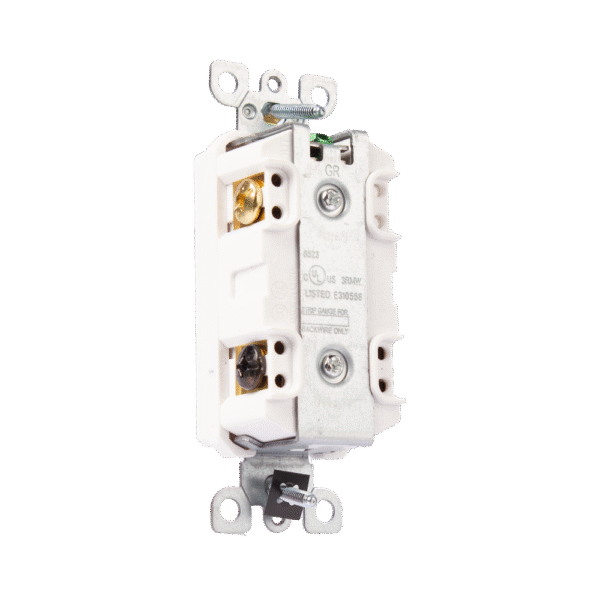

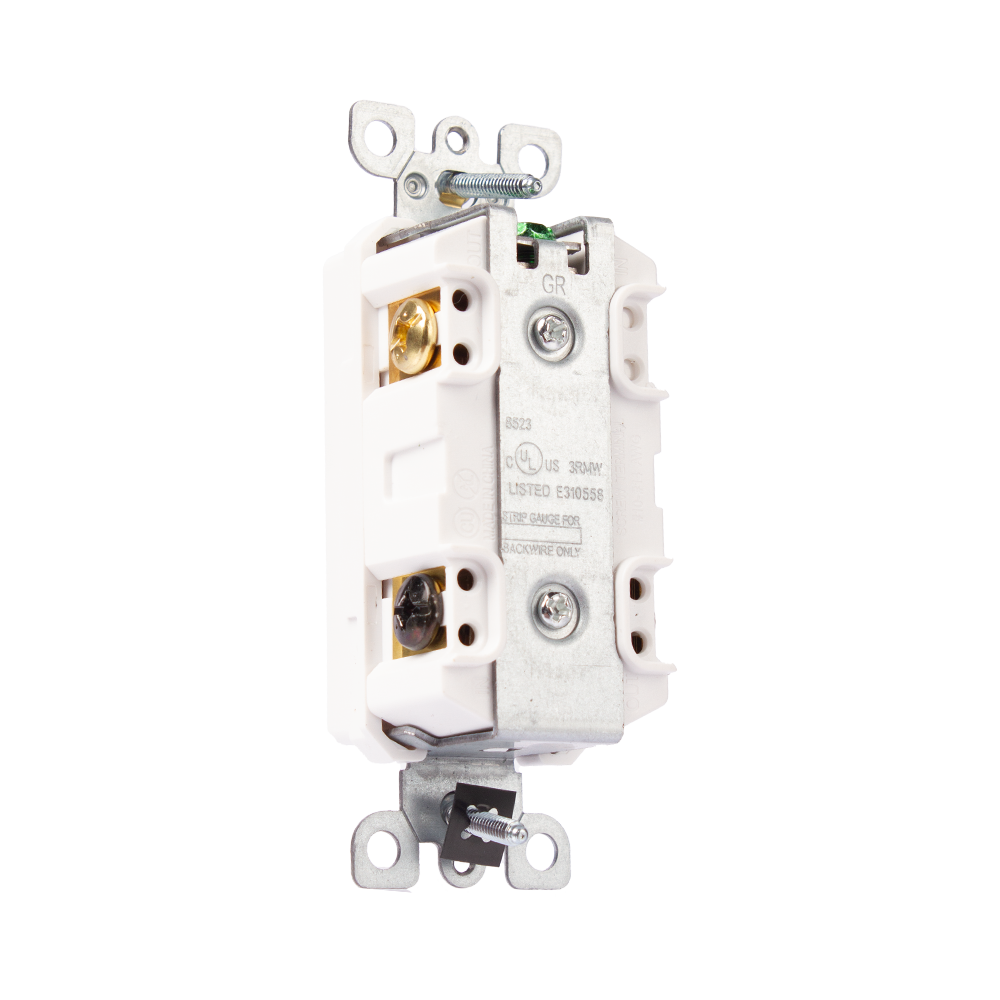

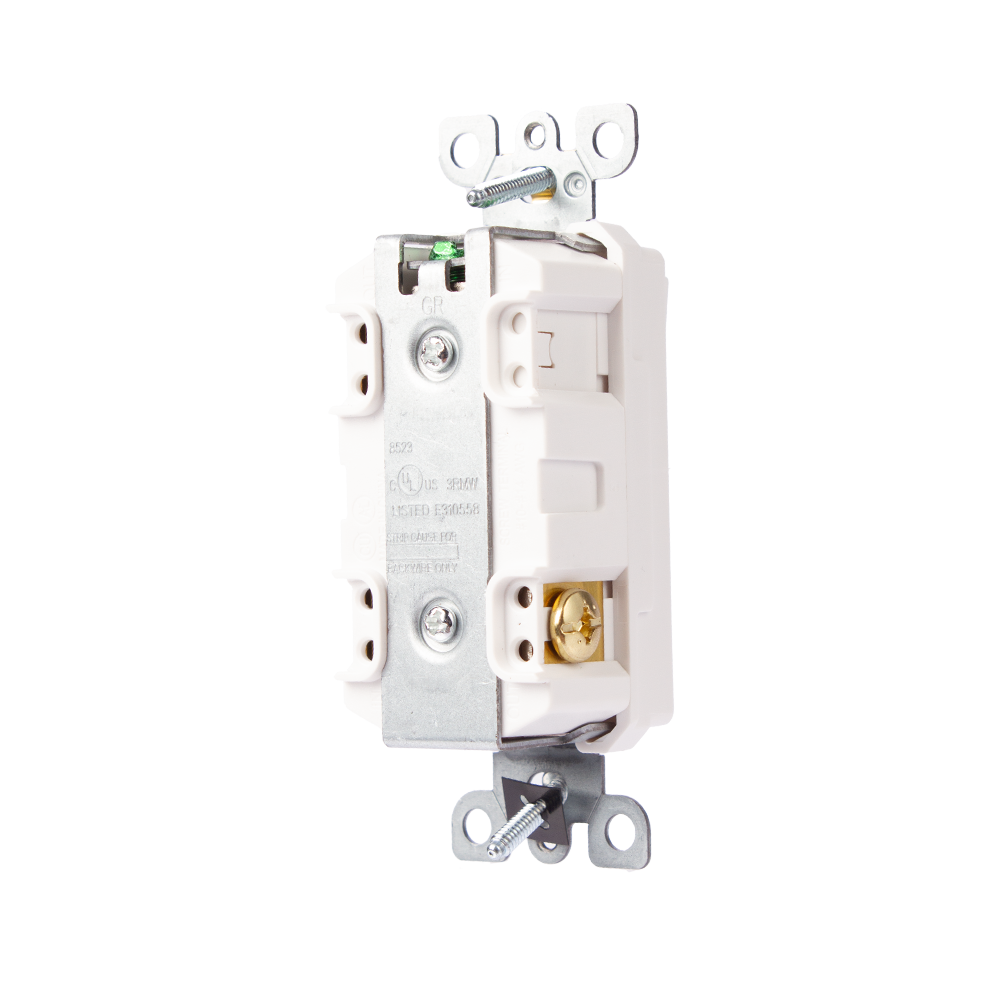

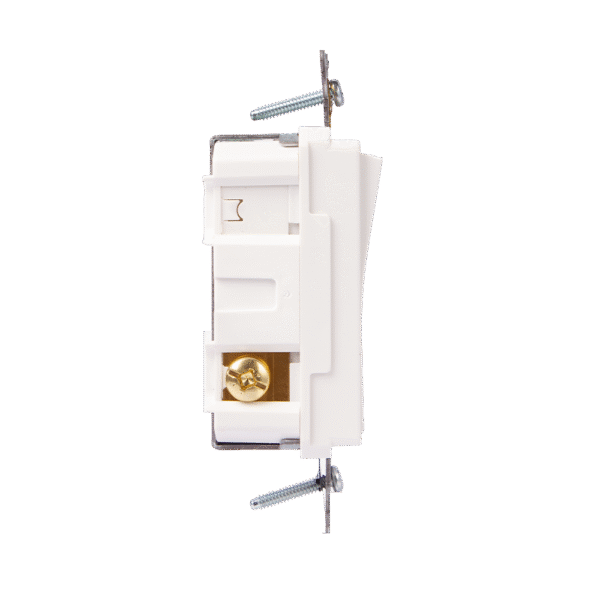

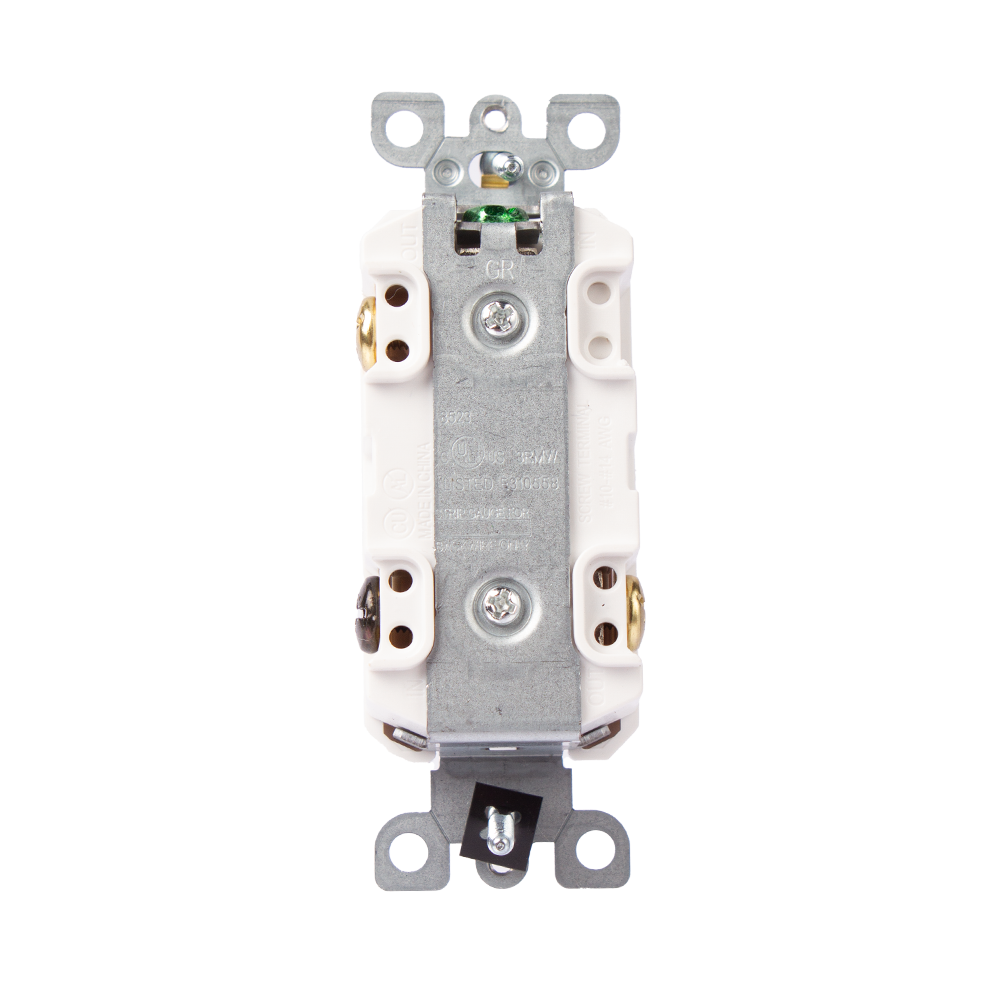

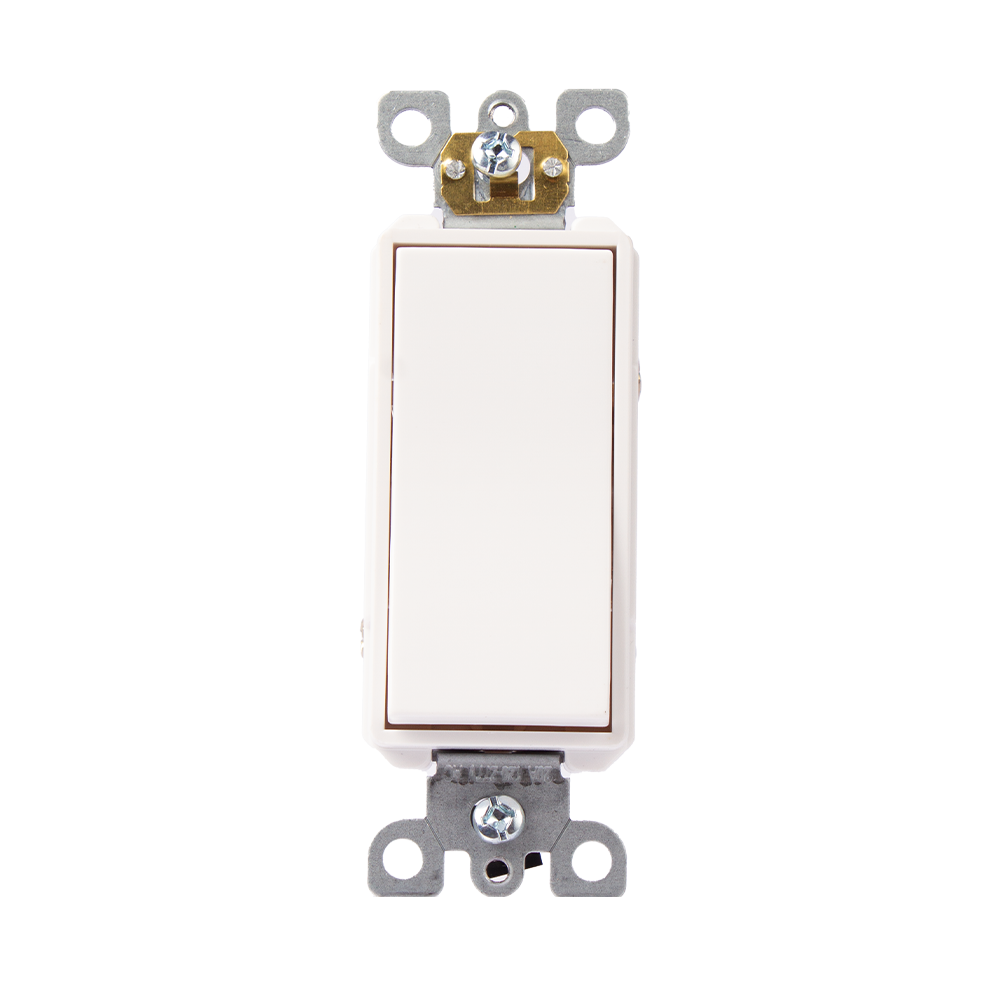

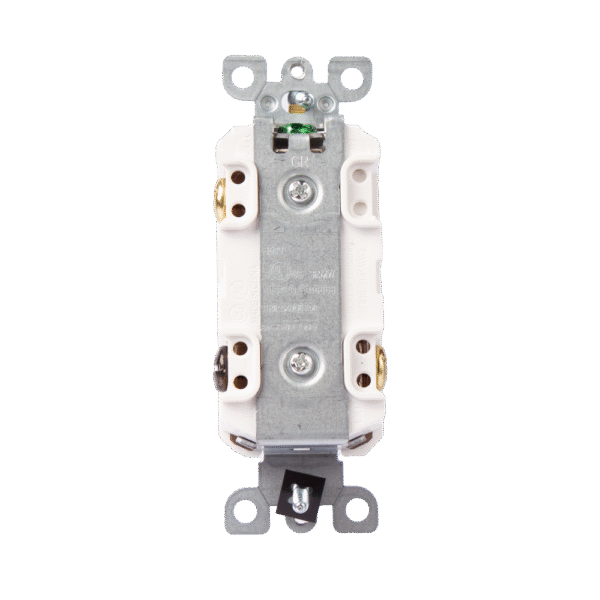

20A 3-Way Decorator Switch

SKU TAN-D7230W Category

Request a Quote

Add to quote

Need a Quote Now?

Call us at +1 954-454-5464

Downloads
Cut Sheet

Benefits and Features
  • High impact-resistant thermoplastic construction offers long service life
  • Smooth & quiet paddle action
  • Ideal for fluorescent lighting fixtures and incandescent lighting
  • Narrow back body for maximum wiring room



Installation

  • Terminal screws accept up to #10 AWG copper or copper-clad wire
  • Long mounting strap eliminates the need for floating installations
  • Tri-drive ground, terminal, and mounting screws offer ease of installation
