TECHNICAL INFORMATION

Product Features

Amperage: 15 Amp

Blade Type: Straight Blade

Color: White

Feature: Tamper-Resistant

Grounding: SelfGrounding

NEMA: 5-15R

Pole: 2

Wire: 3

Voltage: 125 Volts

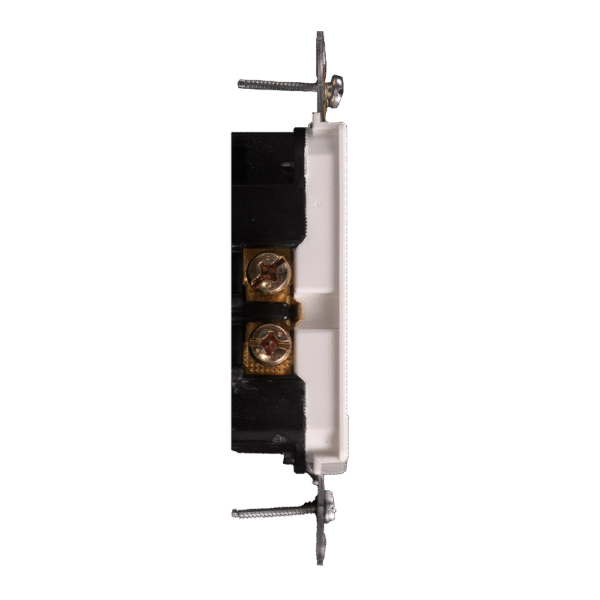

Termination: Quickwire push-In & Side

Type: Duplex Receptacle

Warranty: 2-Year Warranty

Standards and Certifications

Certification: UL Listed

Compliant with UL 498

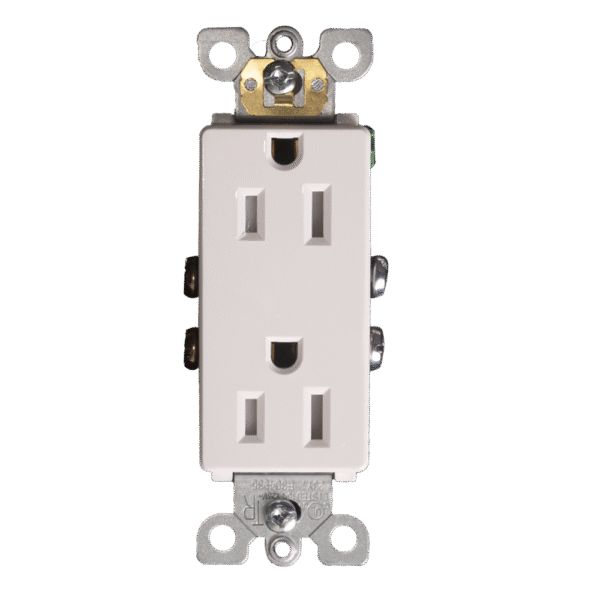

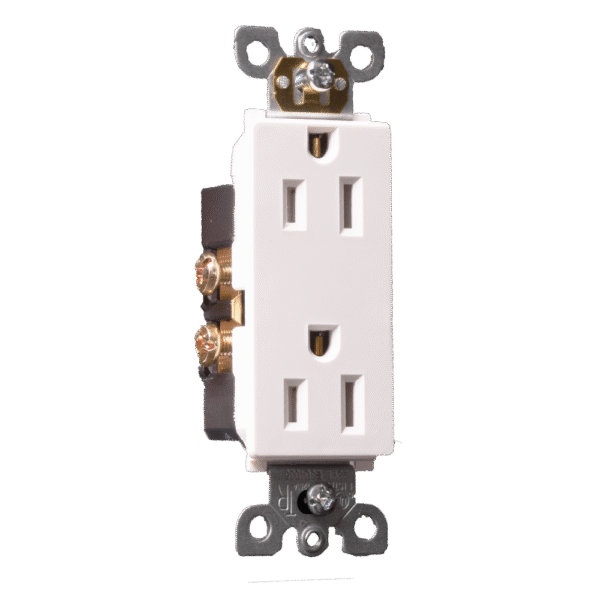

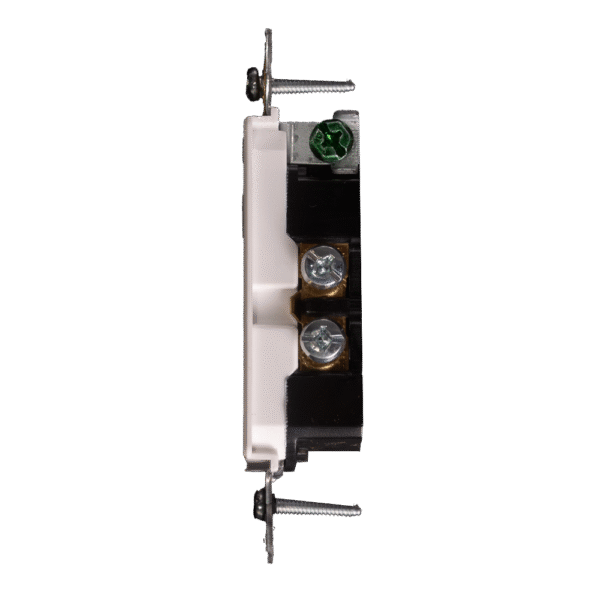

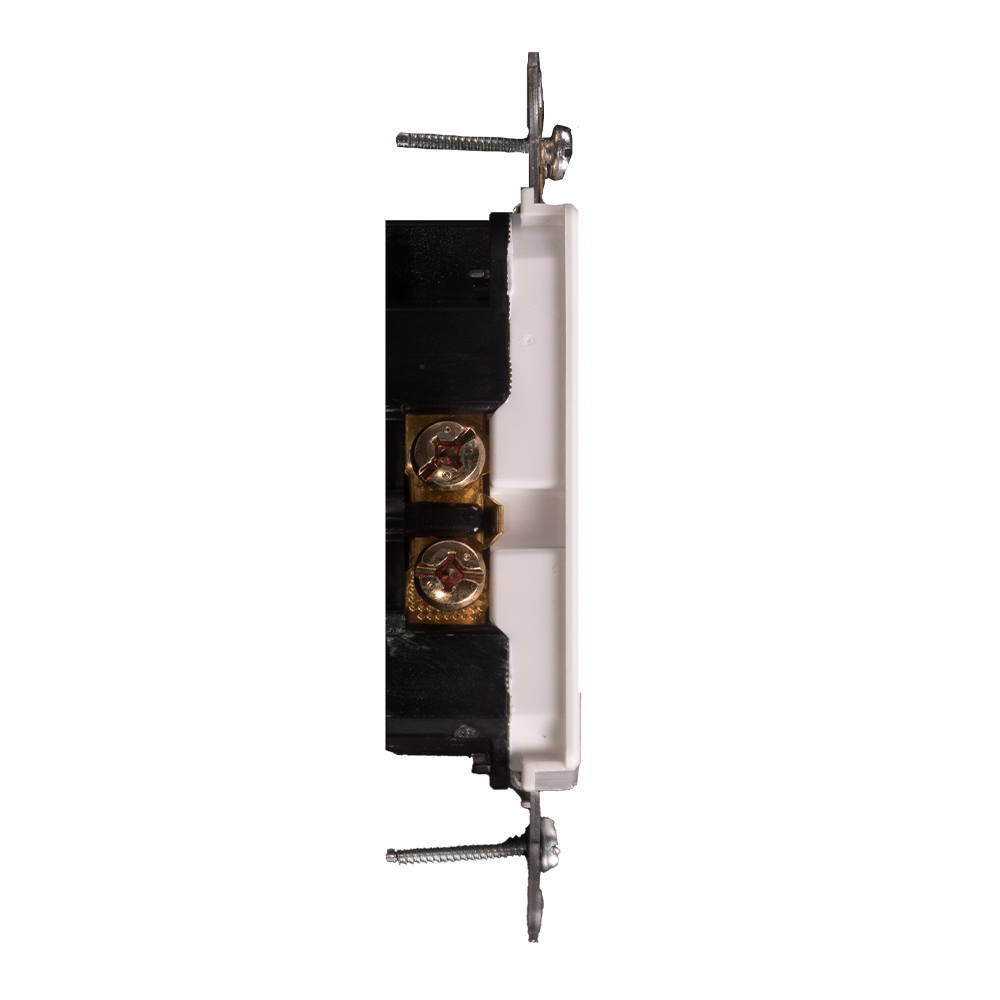

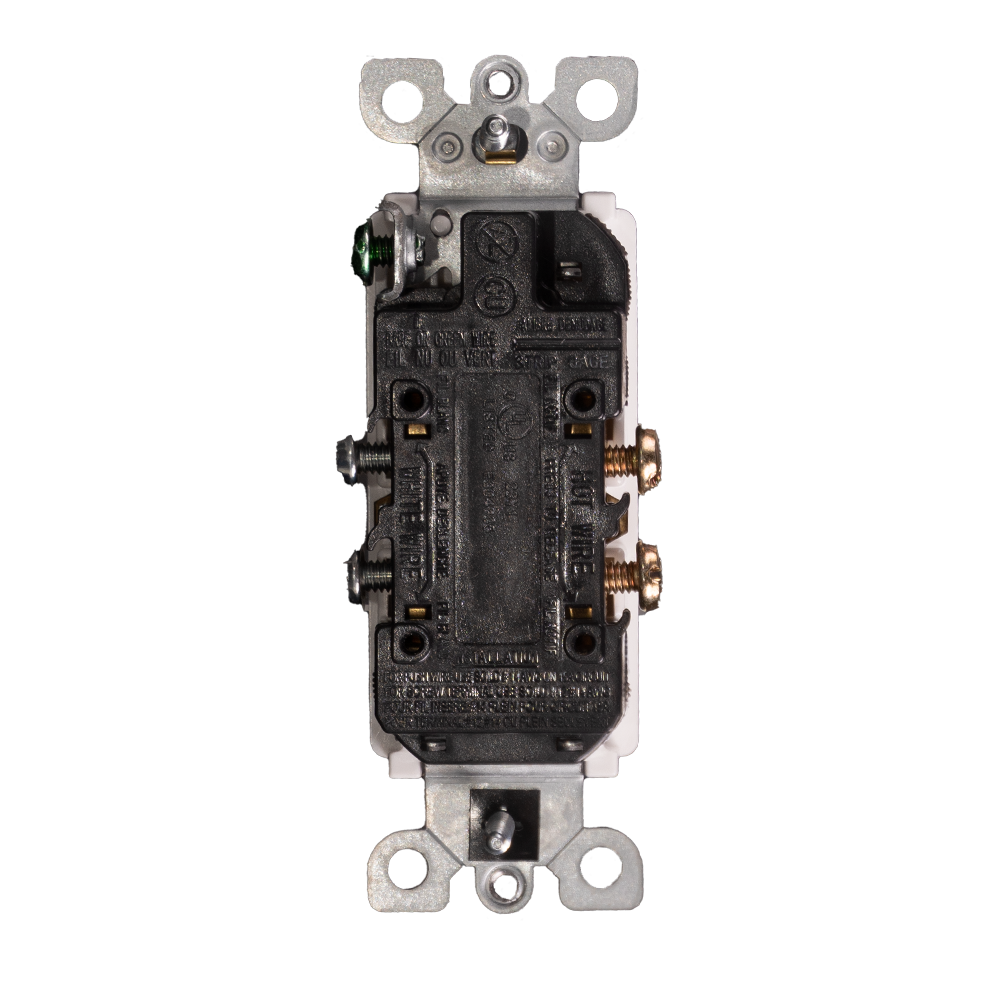

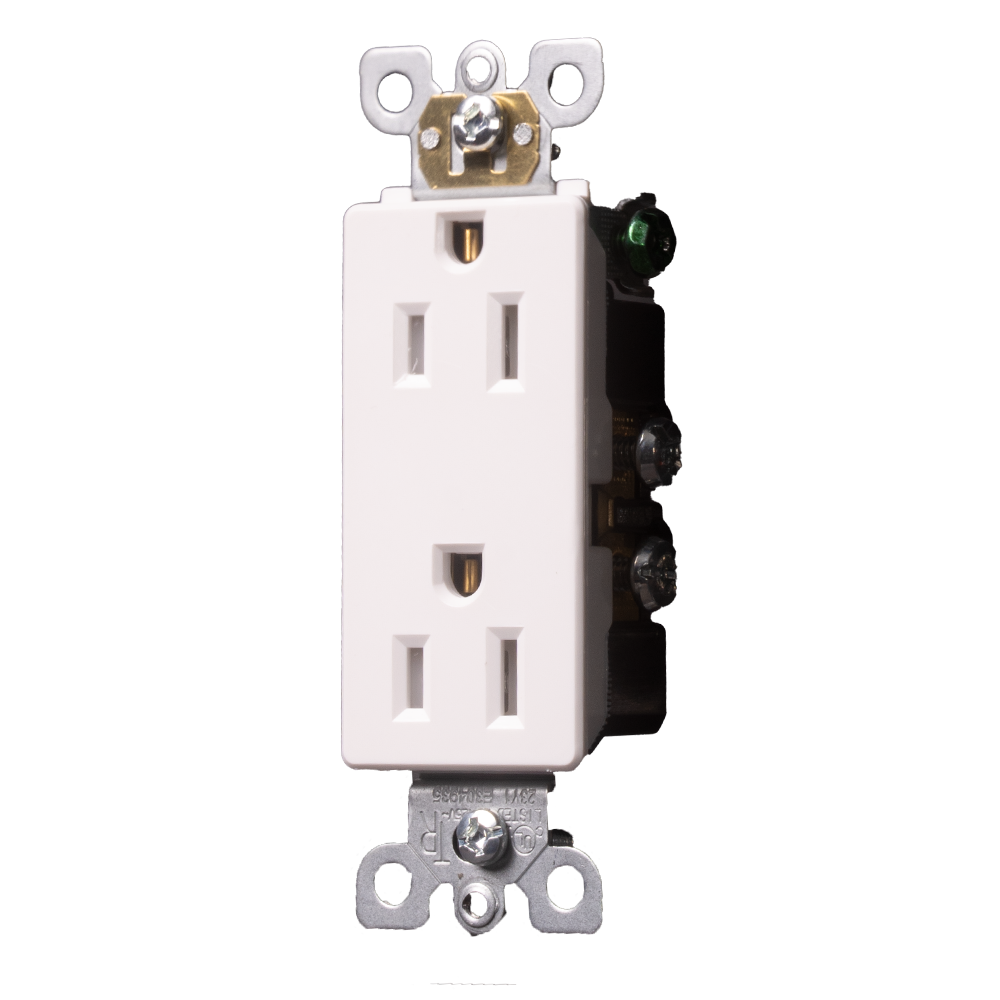

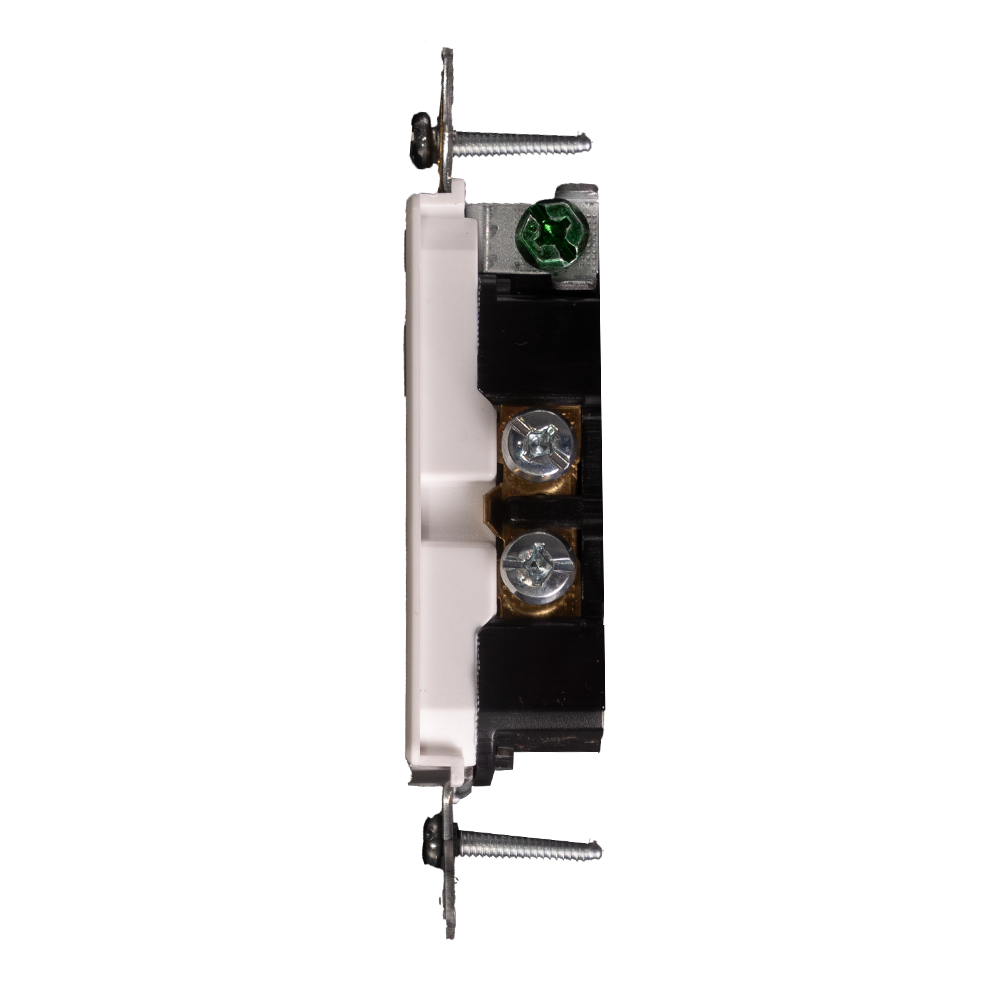

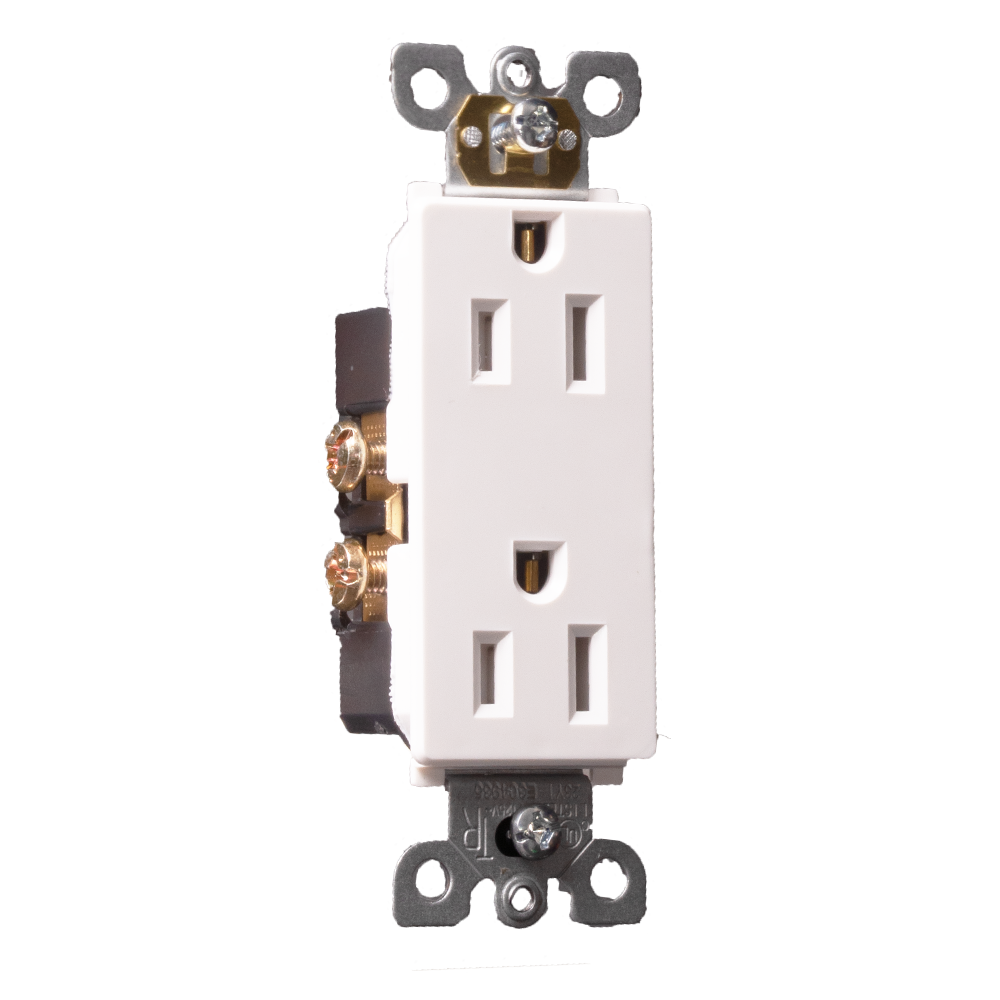

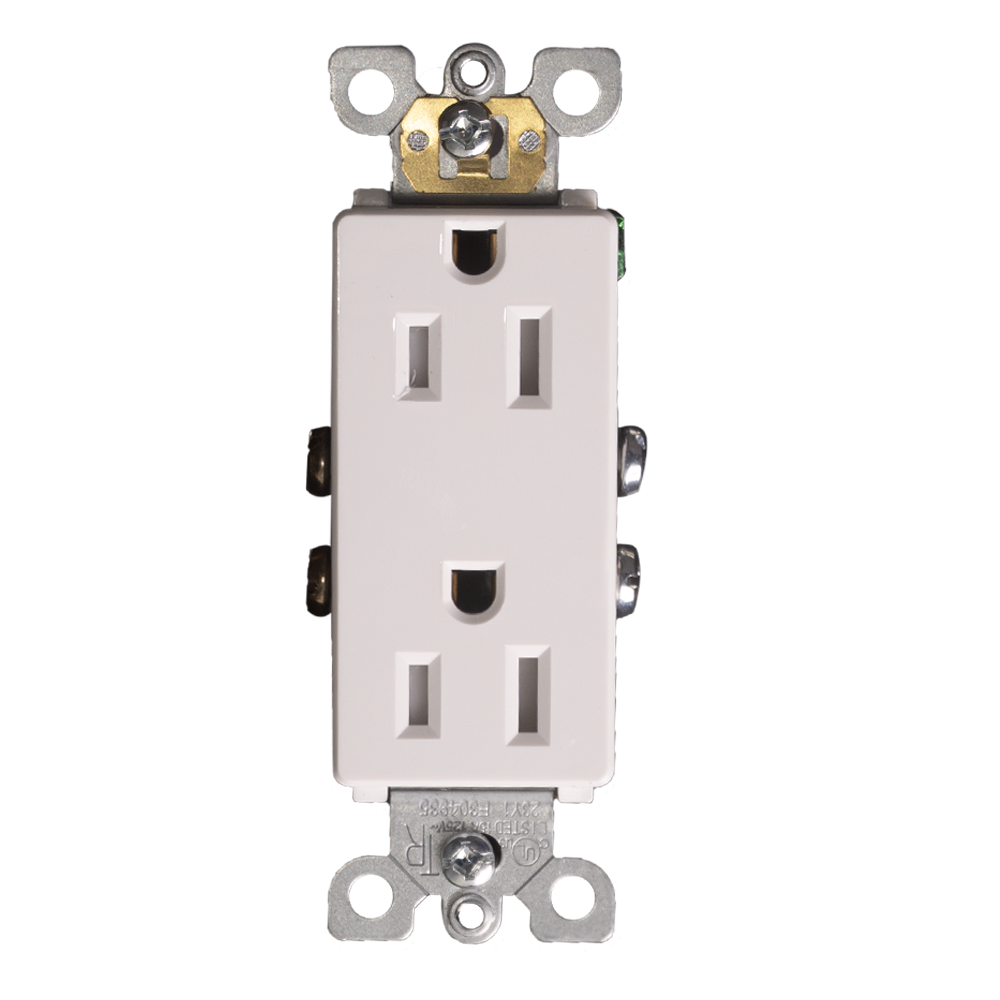

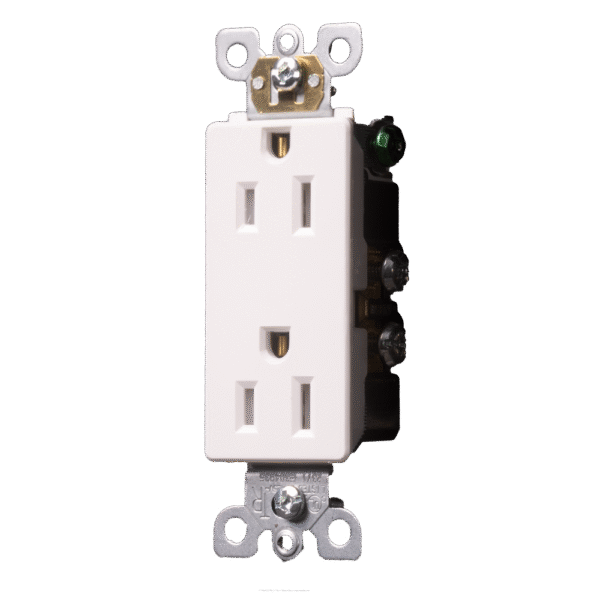

15A Tamper-Resistant Decorator Receptacle

SKU TAN-D7228W Category

Request a Quote

Need a Quote Now?

Call us at +1 954-454-5464

Downloads

Benefits and Features

  • Tamper-resistant offers protection from electrical shocks
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • High impact-resistant thermoplastic construction offers long service life
  • Heavy-duty one-piece steel strap
  • Shallow build for maximum wiring room



Installation

  • Terminal screws accept up to #12 AWG copper or copper-clad wire

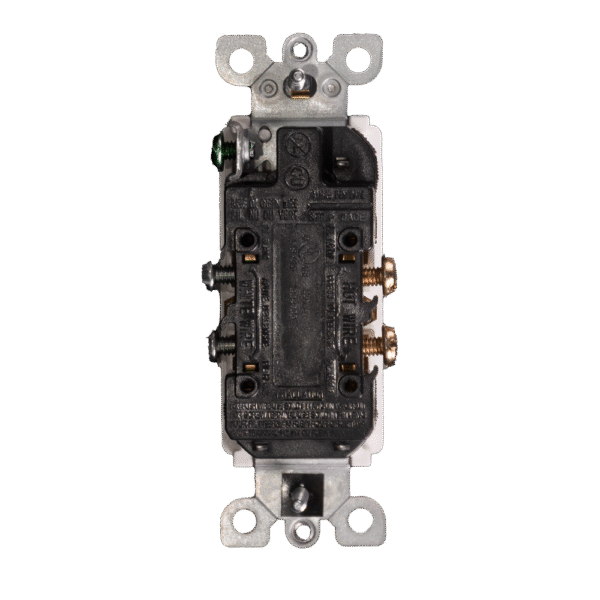

  • Quickwire push-in terminals accept #14 AWG solid copper only
  • Tri-drive ground, terminal, and mounting screws offer ease of installation
