TECHNICAL INFORMATION

      Product Features

  • Amperage: 15 Amp
  • Blade Type: Straight Blade
  • Color: White
  • Grounding: Self-Grounding
  • NEMA: 5-15R
  • Pole: 2
  • Wire: 3
  • Voltage: 125 Volts
  • Termination: Quickwire push-In & Side
  • Type: Duplex Receptacle
  • Warranty: 2-Year Warranty



      Standards and Certifications

  • Certification: UL Listed
  • Compliant with UL 498

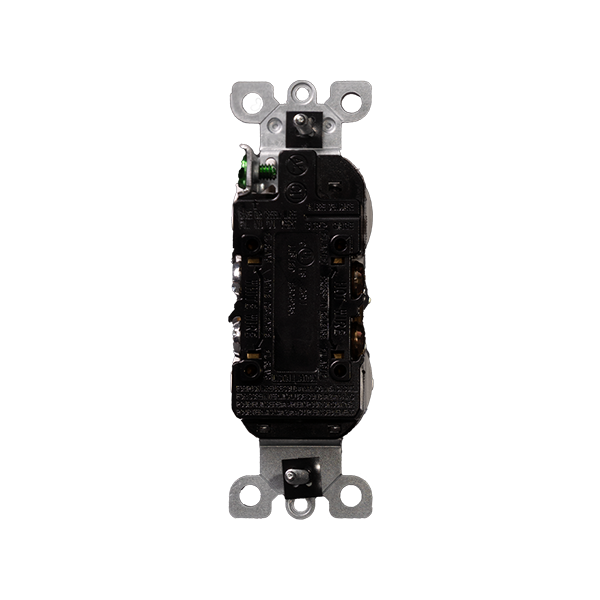

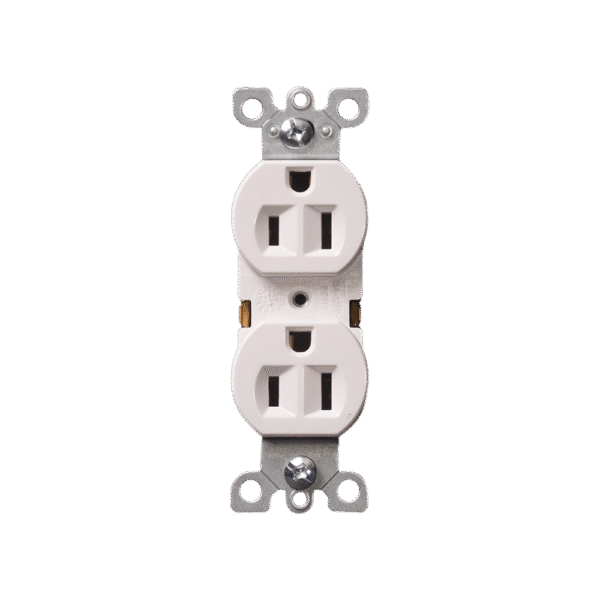

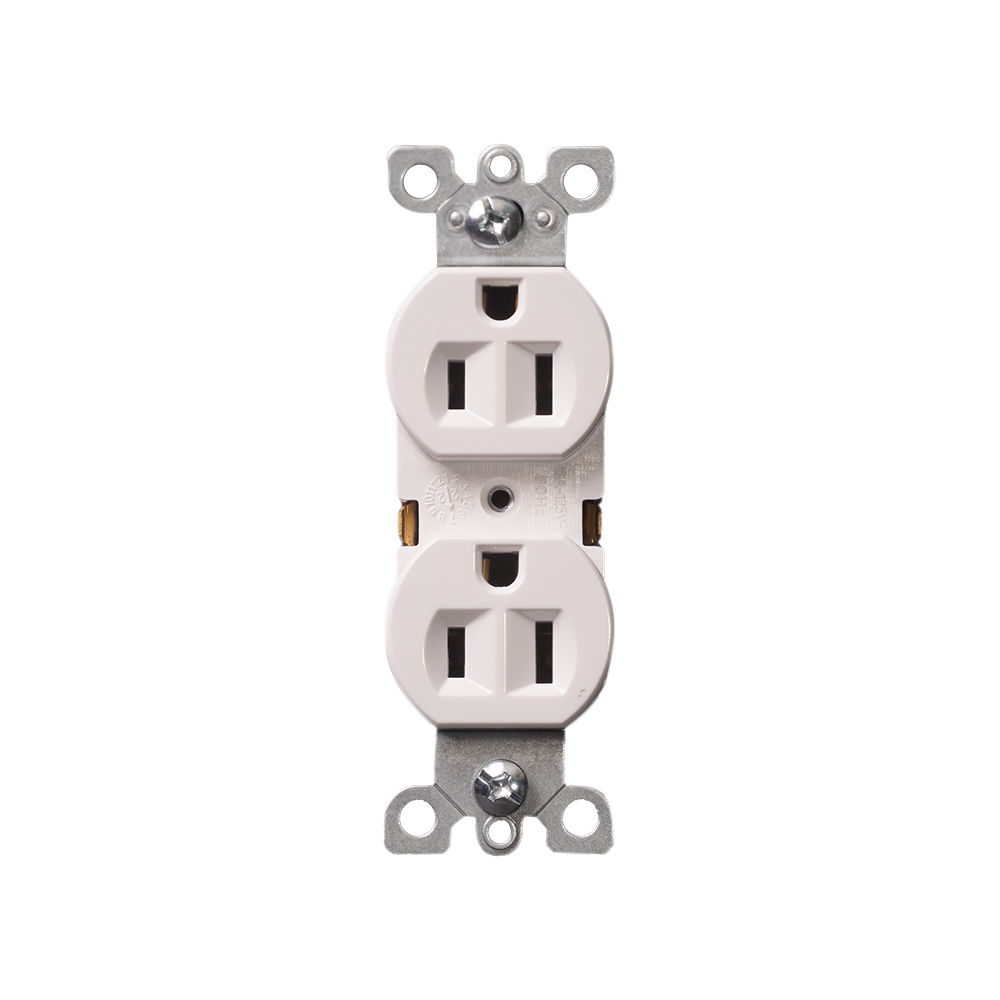

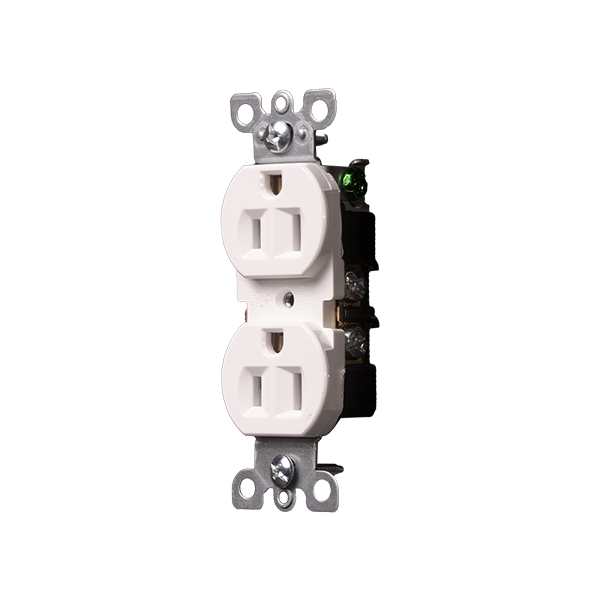

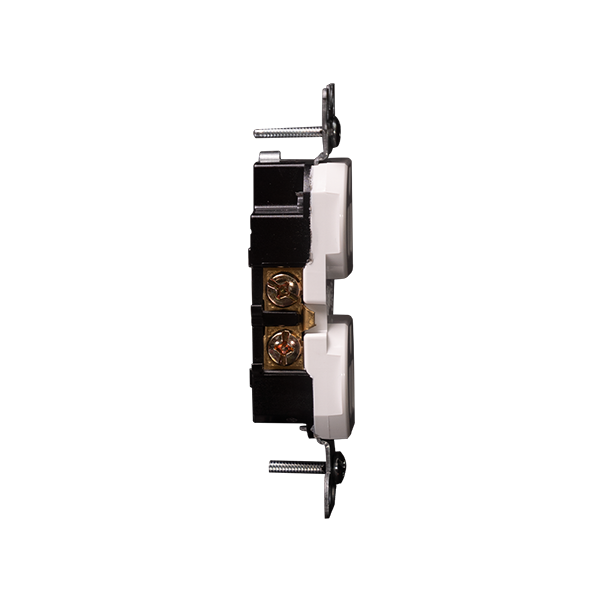

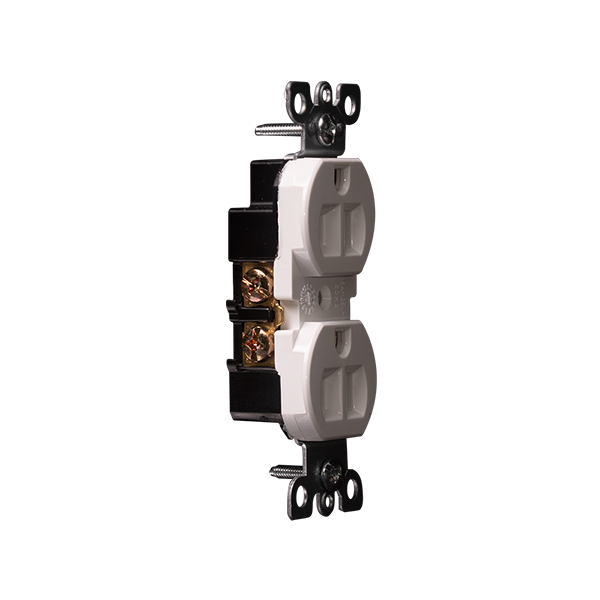

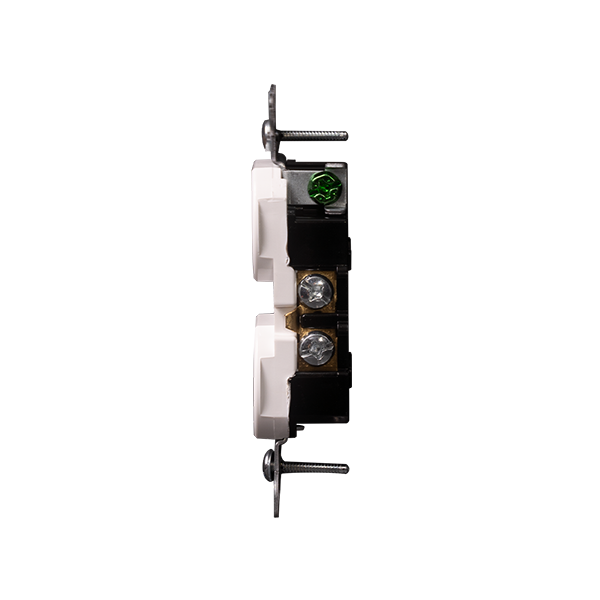

15A Duplex Receptacle

SKU TAN-077W Category

Request a Quote

Need a Quote Now?

Call us at +1 954-454-5464

Downloads

Benefits and Features

  • High impact-resistant thermoplastic construction offers long service life
  • Heavy-duty one-piece steel strap
  • Shallow build for maximum wiring room



Installation

  • Terminal screws accept up to #12 AWG copper or copper-clad wire
  • Quickwire push-in terminals accept #14 AWG solid copper only
  • Tri-drive ground, terminal, and mounting screws offer ease of installation
